Fiber Optic Cables

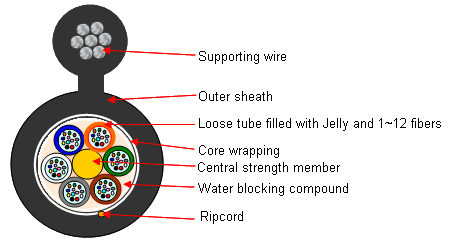

Loose Tube Hanging Rope Overhead Cable (Figure-8)
Product code : LYJVJ8
Optical fibers are protected in loose tubes filled with Thixotropic jelly. These loose tubes are stranded around a central strength member. The cable core is water proof with water blocking compound. The cable portion is attached integrally with stranded steel messenger wires. Suitable for Aerial installation except on power lines.
- Water Blocking
- Aerial Installation
This type of optical cable is aimed to be used for voice, data, broadband and CATV transmission in Long Distance, Backbone and Local Area Networks with Aerial installation method. Special design suitable for installation on Power Transmission Lines and nearby Power Utilities.
Item Successfully Added to Cart
Wrapping Tube CableTM (WTC) consists of Fujikura's novel Spider Web RibbonsTM (SWR) which are wrapped by a water blocking tape and non-metallic side strength members embedded in the sheath. Compared to normal loose tube cable, this full dry structure ribbon cable drastically reduces the cable deployment time by eliminating the process to wipe out jelly and by mass fusion splicing just like conventional ribbon cable. WTC achieves the world's highest density of optical fiber ribbon cable and allows effective utilization of existing conduits. Suitable for lashed aerial and duct installation applications.
Item Successfully Added to Cart
Indoor LSZH Wrapping Tube CableTM (WTC) consists of Fujikura's novel Spider Web RibbonsTM (SWR) which are wrapped by a water blocking tape and non-metallic side strength members embedded in the flame retardant Low Smoke Zero Halogen (LSZH) sheath. Compared to normal loose tube cable, this full dry structure ribbon cable drastically reduces the cable deployment time by eliminating the process to wipe out jelly and by mass fusion splicing just like conventional ribbon cable. WTC achieves the world's highest density of optical fiber ribbon cable and allows effective utilization of indoor . Suitable for indoor applications.
