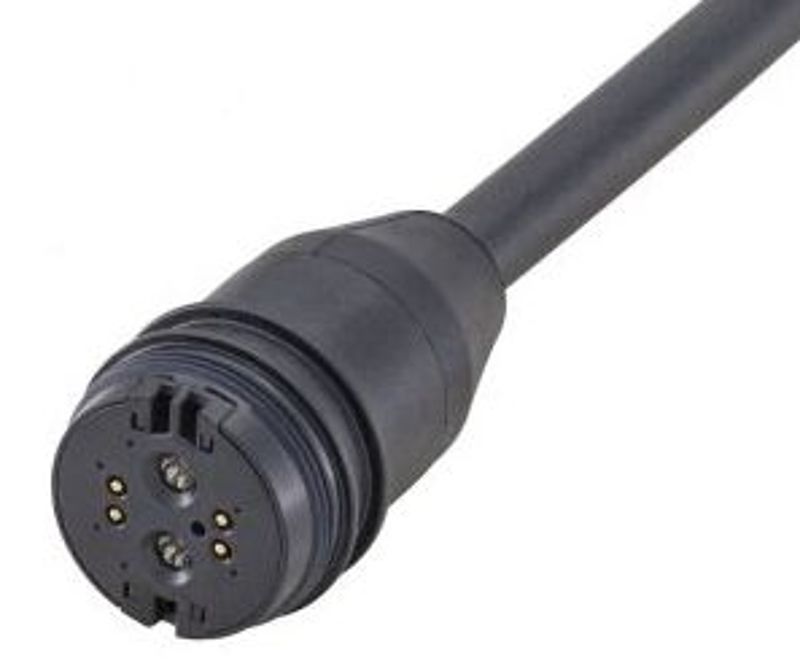

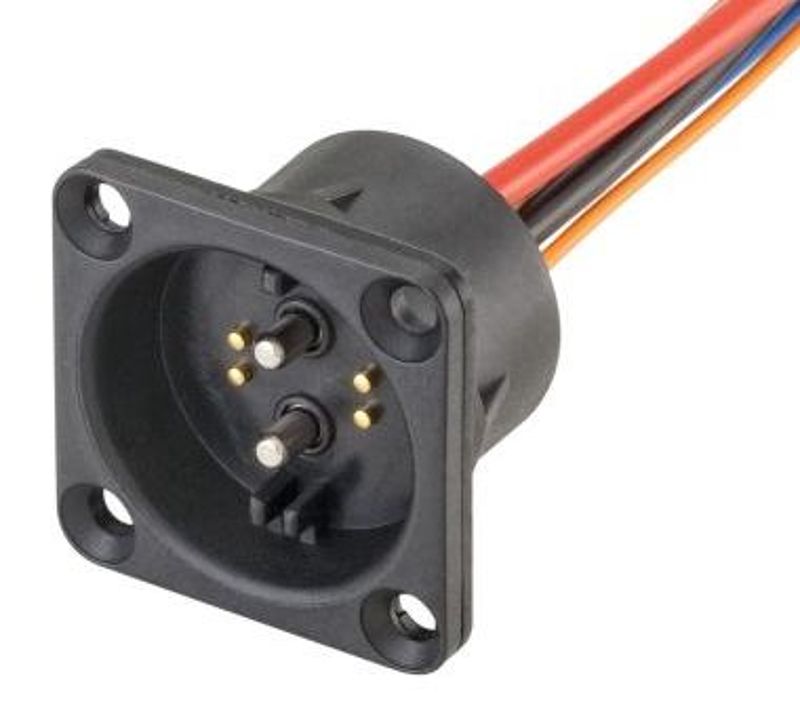

RoPD®
Product code : OLK5N1
Electric Vehicles (LEV) including e-bikes, e-scooters and pedelecs as well as for UGVs and drones. Providing fast and reliable magnetic connection, these are particularly suited to data communication and power transmission of voltages up to 60 V and current loads up to 40 A. The magnetic locking and precision self-mating capability prevents any accidental or forced disconnection from damaging the connector or the LEV. Furthermore, the high tolerance pin and socket design permits a large number of mating cycles. The RoPD® connection system is ideal for many LEV connection applications – including battery changing and charging – where frequent connection and disconnection is required. The four data contacts and two power transmission pins make a hot-plug capability unnecessary as the data contacts activate the power following connection. For added flexibility the data contacts can be used as a BUS system with an additional supply voltage. Versions of the RoPD® system are also available for EnergyBus applications.
- Interface according Rosenberger RoPD®
- European Patent No. EP1537632
- Frequency range (data pins) tbd
- Current (power pins) 10 A, 25 A, 30 A, 40 A
- Voltage (power pins) 60 V DC
- Voltage (data pins) 12 V
- Waterproof (mated) IP67
- Temperature range -40 °C to +65 °C
- 4 pins for data communication and 2 pins for power transmission
- 100% self-location
- Shallow mounting depth
- Waterproof and robust
- Shock and vibration proof
- Reliable contact pressure
- Zero-force mating
- UV resistant
- Mating cycles > 2,500
- Magnetic self-mating mechanism
