RosenbergerHPD®
Product code : 0FQATT

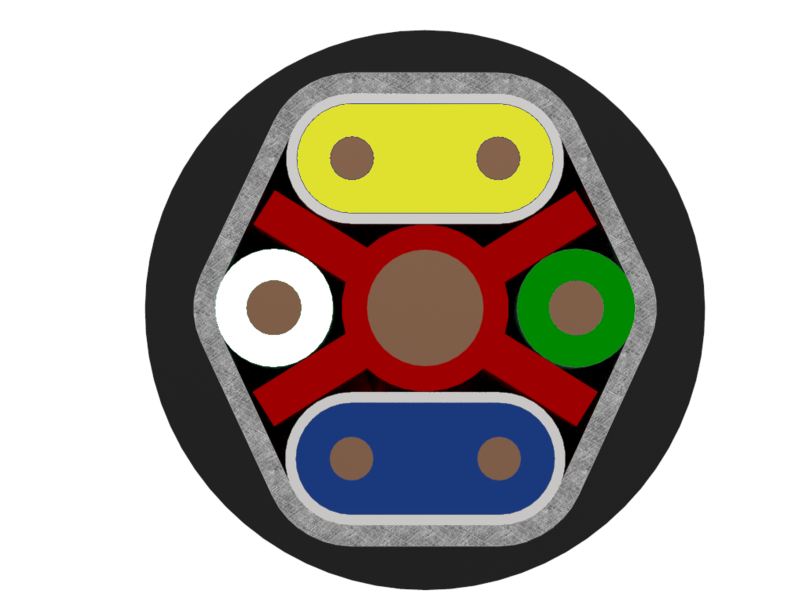

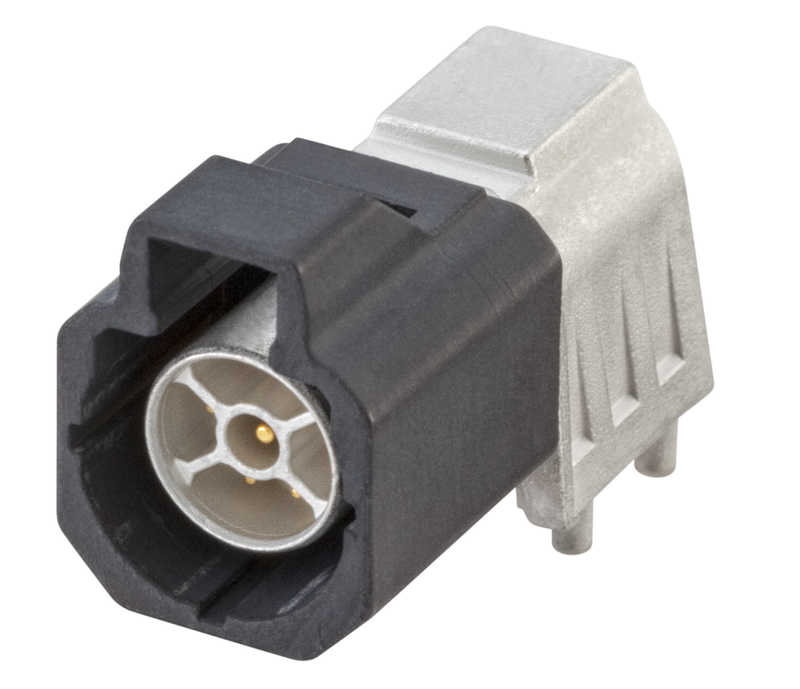

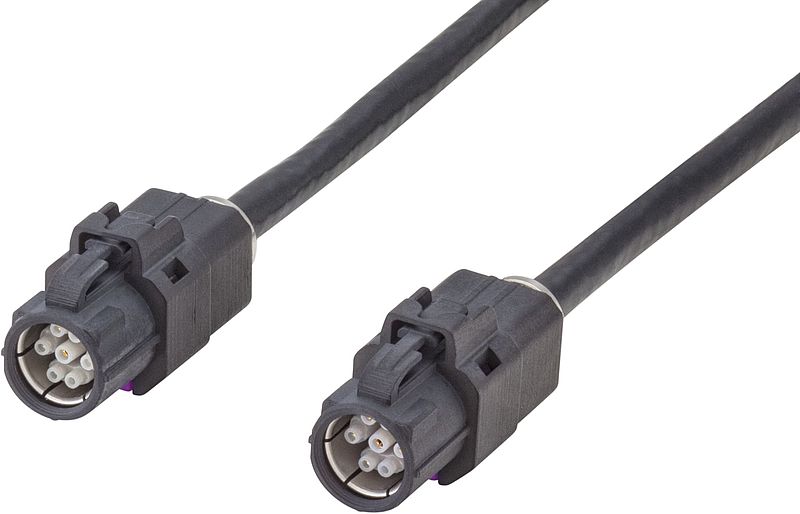

The RosenbergerHPD® universal multicore datalink connection system is optimized for data transmission up to 10 Gbps. In addition to high data performance, the centrally positioned power lane offers a power reserve of up to 100 W / 5 A – in combination with the cable shield as the ground lane. Providing data and power to complex systems through a single interface delivers several benefits including reduced costs and installation footprint. This robust, fully shielded connector is ideally suited to harsh environmental conditions, such as automotive applications, where frequent high data transmission and ampacity is required. Combined with Rosenberger’s specially designed multicore cable, featuring an optimized layout for low attenuation, virtually interference- and crosstalk-free performance is assured.
- Impedance 90 (+-10) Ohm
- Frequency range DC up to 10 GHz
- High data rates up to 10 Gbps
- Current capacity 5 Ampere
- Voltage 20 V
- Performance 100 Watt
- Mating cycles ≥ 25
- Optimized interface layout for low crosstalk
- Fully shielded interface
- Mechanically robust design
- Shock and vibration proof
- For highest automotive requirements – LV 214 Applications
