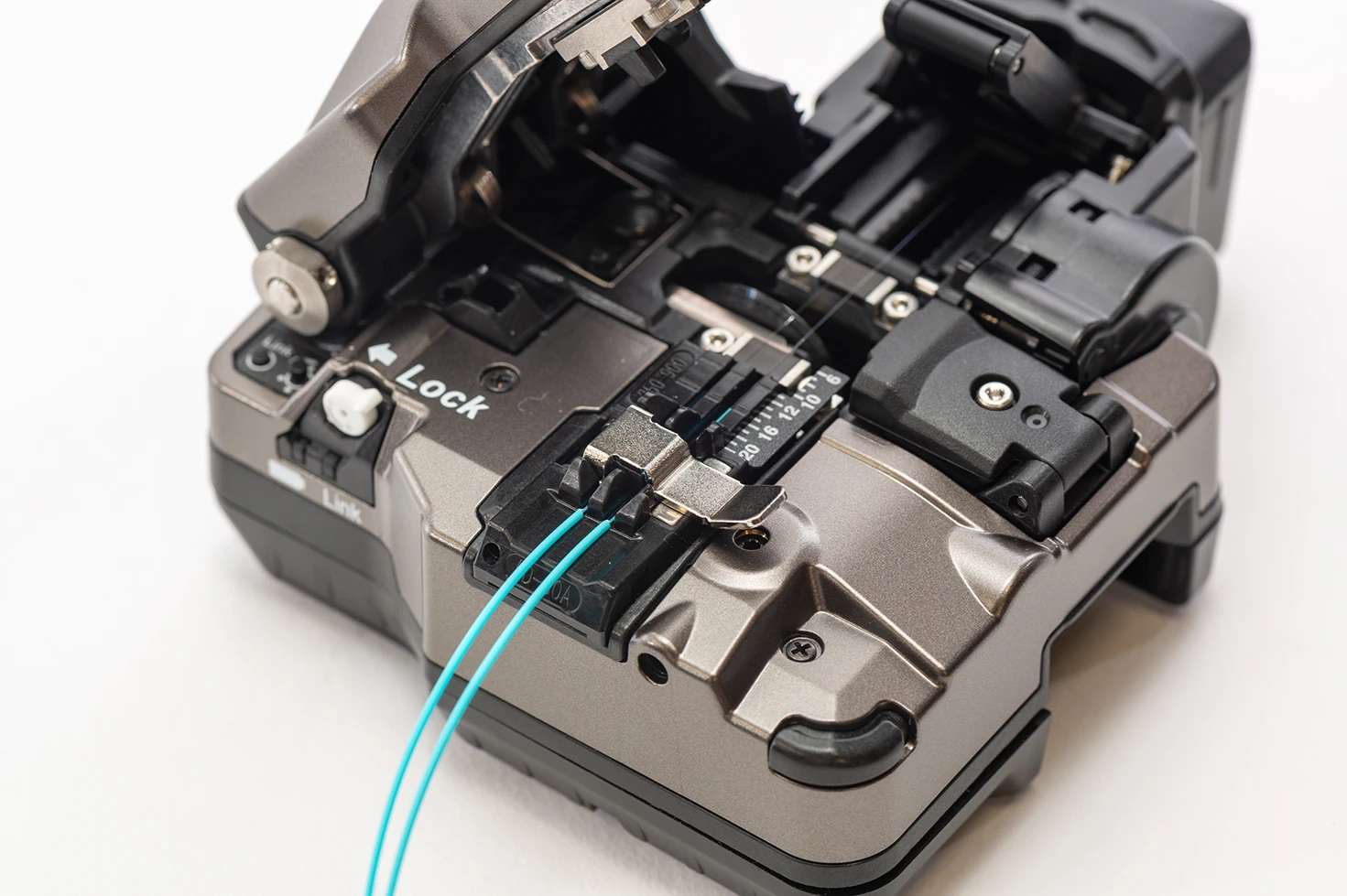

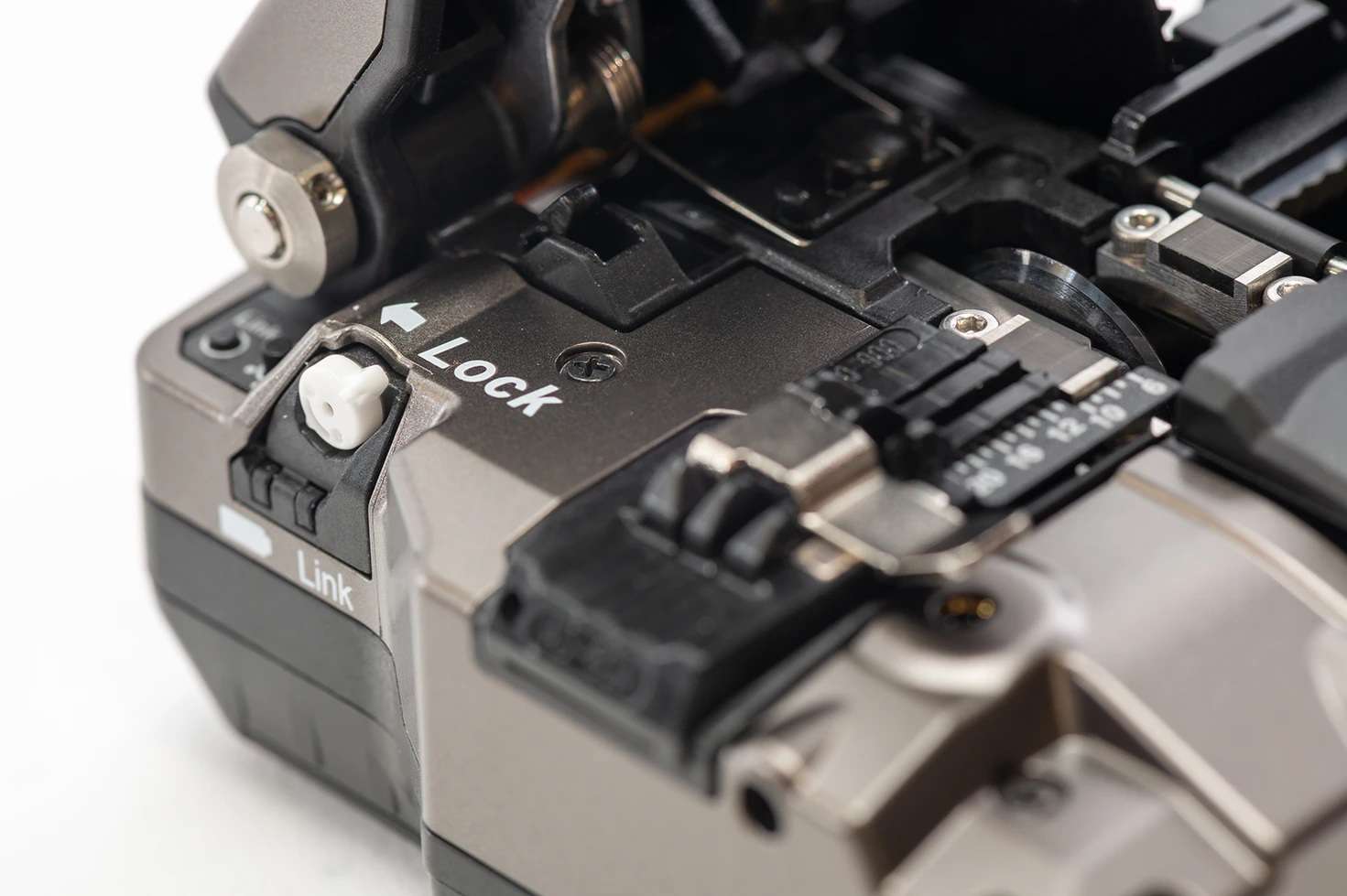

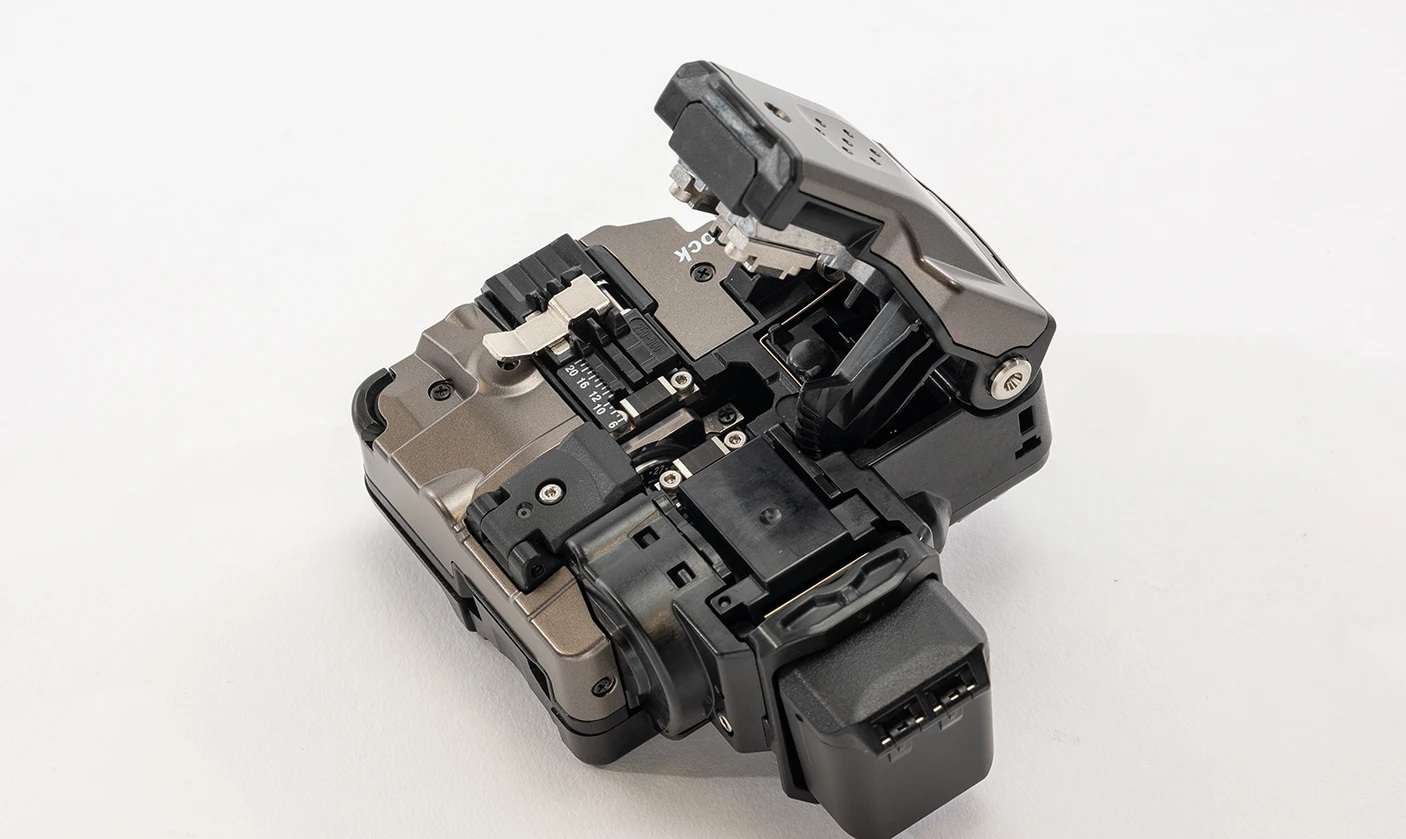

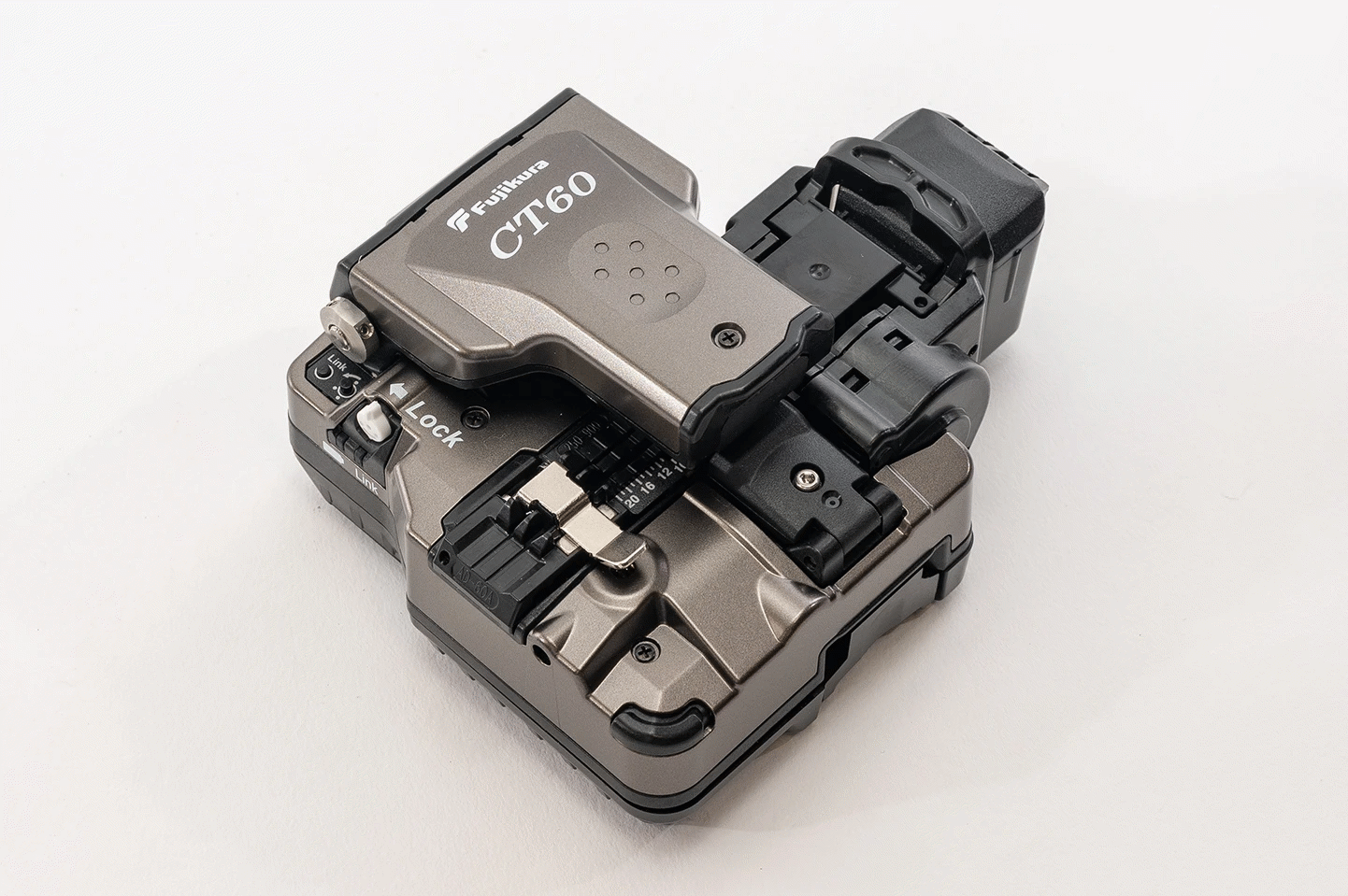

Fiber Cleaver CT60
Ürün Kodu : 5JSNLI
Features Motorized blade rotation Bluetooth communication Shock resistant Simple one-step operation 60,000 cleave blade life Field serviceable PRODUCT DESCRIPTION The Fujikura CT60 Fiber Cleaver is engineered for precision and durability, offering motorized blade rotation and Bluetooth connectivity for seamless integration with compatible Fujikura splicers. Designed to support both single and ribbon fibers, it delivers consistent cleave quality with minimal maintenance and an impressive blade life. One-Handed Operation: Designed for ergonomic use, the CT60 supports one-handed operation with a simplified cleaving mechanism and a toggle button for flexible arm control. Motorized Blade Rotation: The CT60 features fully automatic blade rotation, ensuring consistent cleave quality and extending blade life up to 60,000 cleaves. Bluetooth Connectivity: Seamlessly integrates with compatible Fujikura fusion splicers via Bluetooth, enabling smart blade management and maintenance tracking directly through the splicer. Dual Cleaving: Capable of cleaving two optical fibers simultaneously, the CT60 significantly improves efficiency for technicians working with ribbon or paired fibers. Expanded Blade Positions: With 28 cleaving positions, the CT60 eliminates the need for blade height adjustments, allowing finer control and easier maintenance. Easy Maintenance: The CT60 fiber cleaver has a user-replaceable blade, so there’s no need to send the device to a service center for blade or clamp replacement. Drop-Tested Durability: Engineered to withstand drops up to 30 inches, the CT60 sets a new standard for ruggedness in fiber cleavers, making it ideal for field use. Active Blade Management Technology: Automatically advances blade positions based on cleave count or quality, ensuring optimal performance without manual intervention. Versatile Fiber Compatibility: Supports single-mode and multimode fibers, including single and ribbon configurations up to 16 fibers, with a wide range of coating diameters and fiber holders. Compact and Lightweight Design: With a palm-sized design and a weight of just 280 g (including battery), the CT60 is portable and easy to handle in any environment. User-Replaceable Blade and Components: Simplified maintenance allows users to replace blades and clamps in the field, reducing downtime and service costs.
Features
Stable cleave quality
The CT60 achieves stable, high-precision cleaving quality by utilizing a high-performance clamp and high-quality blade.
Enhanced usability
Become more compact
Compared to the old model, it has been successfully downsized!
It is now easier to operate with one hand.
Simplified cleaving action
The CT60 features a mechanism that allows the cutting blade to move to the set position with just a push, enabling one-handed operation and significantly improving usability.
By Hand
On the table
Adjustable lever opening angles
By adjusting the lever opening angle, it is easy to use in various situations, whether on a tabletop or handheld.
By Hand
On the tab
Increased number of blade positions
By increasing the number of blade positions from 16 to 28 compared to the previous model, no need for blade height adjustment anymore.
Easy Maintenance
The CT60 fiber cleaver has a user replaceable blade, so there’s no need to send the device to a service center for blade or clamp replacement.
Specification Sheet
The 90R16 is a mass fusion splicer capable of splicing up to 16 fiber ribbon cables simultaneously. In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time. The 90R16 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R16 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity. In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers. The 90R16 can also splice single fibers if required. also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously. Features
Ürün Başarıyla Sepete Eklendi
The 90R12 is a mass fusion splicer capable of splicing up to 12 fiber ribbon cables simultaneously. In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time. The 90R12 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R12 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity. In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers. The 90R12 can also splice single fibers if required. also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously.
Ürün Başarıyla Sepete Eklendi
Fujikura 99S Fusion Splicer Features Automated wind protector, tube heater and splice operation Dual fiber loading reduces preparation time Embedded fiber guide for accurate, error-free fiber loading Built-in Splice Coach virtual mentor to improve productivity Custom Splicer Setup menus with new UI and visual diagrams GPS splice stamp for location record keeping Location Based Locking prevent unauthorized use or theft USB-C charging and data port Multi-function transit case with integrated workstation Applications Distribution fiber repair Long-haul network installation Field termination with splice-on connectors Access network installation Fanout kits, pigtails and splice cassettes OSP cable installation and repair Optical modules – splitters, couplers, MUXs, EDFAs and attenuators
Ürün Başarıyla Sepete Eklendi
Clad Alignment Fusion Splicer 45S Kit The 45S is the essential splicer based on active clad alignment technology with features, Fast Operation, User-friendly Design, Versatile Functionality and Consistent Quality.
