Fiber Ek Cihazı ve İlgili Ürünler

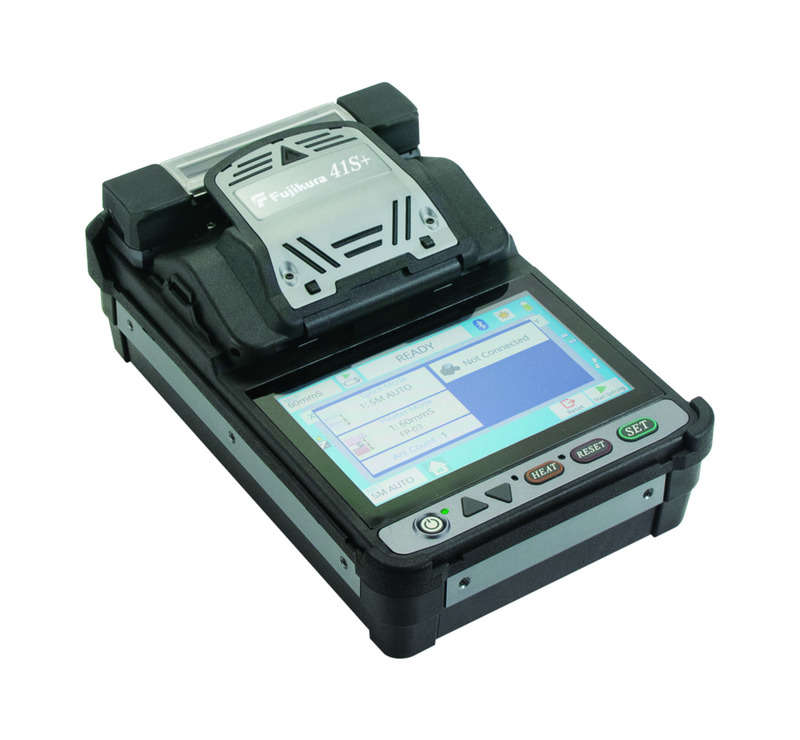

Fujikura 41S+ Fusion Splicer
Ürün Kodu : ZY0RET
FEATURES: Warm Splice Imaging (WSI) loss estimation technology Improved real-time arc control for fibers with poor cleave angles Bluetooth enabled cleaver management Two camera, active cladding alignment 5" touchscreen monitor Interchangeable sheath clamps and fiber holders Fully ruggedized for shock, moisture and dust resistance Extended-life electrodes, 5,000 splices, exchangeable without tools
PRODUCT DESCRIPTION
The Fujikura 41S+ is a fully ruggedized, active cladding alignment fusion splicer. Core sensing loss estimation technology provides the most accurate assessment of splice loss available in any active cladding alignment splicer in the world. Enabled by Warm Splice Imaging (WSI), the 41S+ can determine the accuracy of core alignment by evaluation of the splice during the heating process. This technology delivers splice loss estimates with a greater level of accuracy as those based on only cladding alignment. The new Active Fusion Control (AFC) technology improves splice losses for fibers that possess a poor cleave angle. Combined with Active Blade Management between the splicer and cleaver, the Fujikura 41S+ contains a robust set of splicing features that will reduce the likelihood of poor splice installations or repairs. A 6-second splice time and 25-second shrink time offers unmatched speed and productivity, while an easy-to-use touchscreen monitor provides simple and intuitive menu navigation. Interchangeable sheath clamps or fiber holders provide versatility for user preference, and compatibility with fusion installable connectors. The extended-life battery is rated for up to 200 splice and heat cycles. Long-life electrodes, lasting 5,000 splices, help minimize downtime for replacement and stabilization. The large 5” monitor provides a crystal clear image, even in the brightest sunlight. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available.
Backed by the best service team in the industry, the Fujikura 41S+ is the ideal splicer to use when portability, ruggedness, and reliability are needed for your splicing application.
Specification Sheet
The 90R12 is a mass fusion splicer capable of splicing up to 12 fiber ribbon cables simultaneously. In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time. The 90R12 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R12 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity. In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers. The 90R12 can also splice single fibers if required. also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously.
Ürün Başarıyla Sepete Eklendi
The 90R16 is a mass fusion splicer capable of splicing up to 16 fiber ribbon cables simultaneously. In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time. The 90R16 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R16 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity. In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers. The 90R16 can also splice single fibers if required. also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously. Features
Ürün Başarıyla Sepete Eklendi
The 90R12 is a mass fusion splicer capable of splicing up to 12 fiber ribbon cables simultaneously. In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time. The 90R12 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R12 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity. In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers. The 90R12 can also splice single fibers if required. also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously.
Ürün Başarıyla Sepete Eklendi
Fujikura 90S+ Fusion Splicer FEATURES: Cleaver tracking and upkeep with wireless communication Improved real-time arc control for fibers with poor cleave angles Loose and tight buffer with same sheath clamp Automated wind protector, sheath clamps and splice operation Graphical User Interface with 5.0" Touchscreen PC software and 90S manual downloaded from splicer Multi-function transit case with integrated workstation Lithium-ion battery with 300 splices/shrinks per charge APPLICATIONS: Distribution fiber repair Long-haul network installation Field termination with splice-on connectors Access network installation Fanout kits, pigtails and splice cassettes OSP cable installation and repair Optical modules – splitters, couplers, MUXs, EDFAs and attenuators
