Tek Kılıflı, Non-metalik Fiber Optik Kablo

This type of optical cable is aimed to be used for voice, data, broadband and CATV transmission in Long Distance, Backbone and Local Area Networks with Underwater installation method for Swamp, Lake and River Crossings.

Armoured Wrapping Tube CableTM (WTC) consists of Fujikura's novel Spider Web RibbonsTM (SWR) which are wrapped by a water blocking tape and non-metallic side strength members embedded in the corrugated steel tape armoured sheath. Compared to normal loose tube cable, this full dry structure ribbon cable drastically reduces the cable deployment time by eliminating the process to wipe out jelly and by mass fusion splicing just like conventional ribbon cable. WTC achieves the world's highest density optical fiber ribbon cable and allows effective utilization of existing conduits. Suitable for lashed aerial, duct and direct buried installation applications.

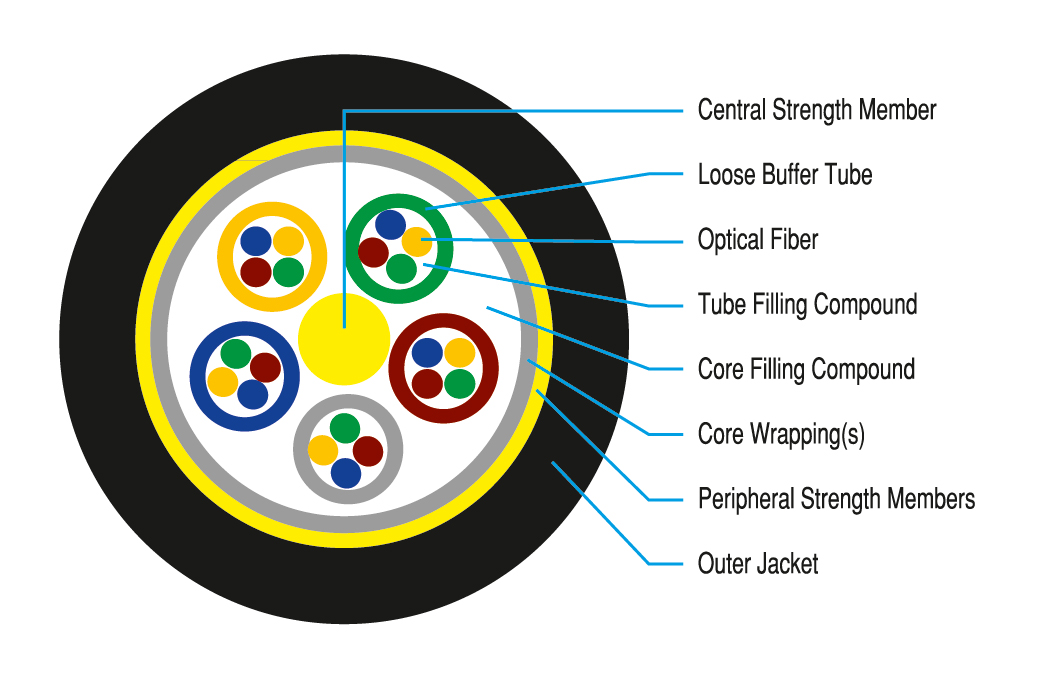

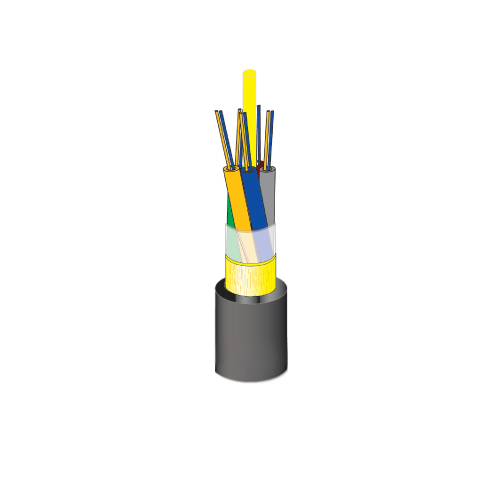

These loose tubes are stranded around a central strength member. The cable core is water proof with water blocking compound. The corrugated steel armor further protected by outer sheath provide excellent mechanical performance. Suitable for duct and direct burial applications.

Optical fibers are protected in loose tubes filled with Thixotropic jelly. These loose tubes are stranded around a central strength member. The cable core is water proof with water blocking material and outer sheathed for mechanical protection. Suitable for micro duct installation applications.
